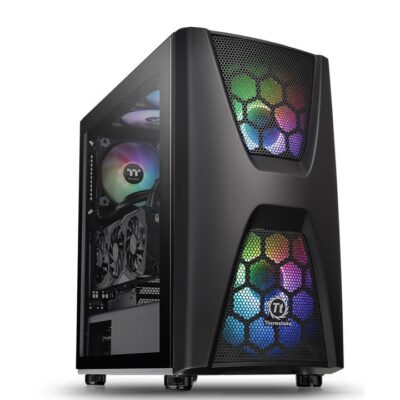

P/N
CA-1N5-00M1WN-00
SERIES
Commander
MODEL
Commander C34 TG ARGB
CASE TYPE
Middle tower
DIMENSION (H X W X D)
462 x 233 x 533 mm
(18.2 x 9.2 x 21 inch)
NET WEIGHT
7.86 kg / 17.33 lb
SIDE PANEL
4mm Tempered Glass x1
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Front (intake) :
200 x 200 x 30 mm ARGB fan x2
(800rpm, 29.2 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
–
3 x 3.5“ or 2.5” (HDD Bracket); 2 x 2.5” (HDD Bracket)
EXPANSION SLOTS
7 + 2
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
USB 3.0 x 2, HD Audio x 1, RGB Switch x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 140mm, 2 x 200mm
Top:
2 x 120mm, 2 x 140mm
Rear:
1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Front: 1 x 360mm, 1 x 280mm
Top: 1 x 240mm, 1 x 280mm
Rear: 1 x 120mm
CLEARANCE
CPU cooler height limitation: 180mm
PSU length limitation: 200mm
VGA length limitation: 310mm(With reservoir) 410mm(Without reservoir)
VGA width limitation(Vertically): 45mm
VGA height limitation: 110mm
RAM height limitation: 35mm (With 140mm radiator series) 50mm (With 120mm radiator series)
